Texel Studio 3: Texel BodyFit Addon Installation and User Guide

Overview

Texel BodyFit Addon is an additional module (addon) for Texel Studio 3 that automatically obtains body measurements of a scanned person according to GOST and ISO standards. More than 100 body features are supported - circumferences, heights, distances between anthropometric points, etc. The resulting measurements can be visualized in 3D and exported to various formats, such as Microsoft Excel (XLSX) and CSV. Texel BodyFit Addon also enables export of body features for integration with Assol CAD.

Texel BodyFit Addon

This guide describes the process of installing Texel BodyFit Addon, registering you license, and using the addon with Texel Studio 3.

System Requirements

To install Texel BodyFit Addon, your system must meet the following minimum requirements:

  • x86_64 architecture processor (Intel or AMD)
  • 16 GB of RAM
  • Windows 10/11 operating system
  • Texel Studio 3 software installed

Installation and License Registration

To install Texel BodyFit Addon, download and run the installer (the installer file name usually looks like "Texel_BodyFit_Addon_x.x.x.x-win64_Setup.exe"), select your preferred installer language, and follow the step-by-step instructions. The installer will automatically detect installed Texel Studio 3 software, and will display a message if it is not found. After successful installation, a license registration dialog should appear with three text fields:

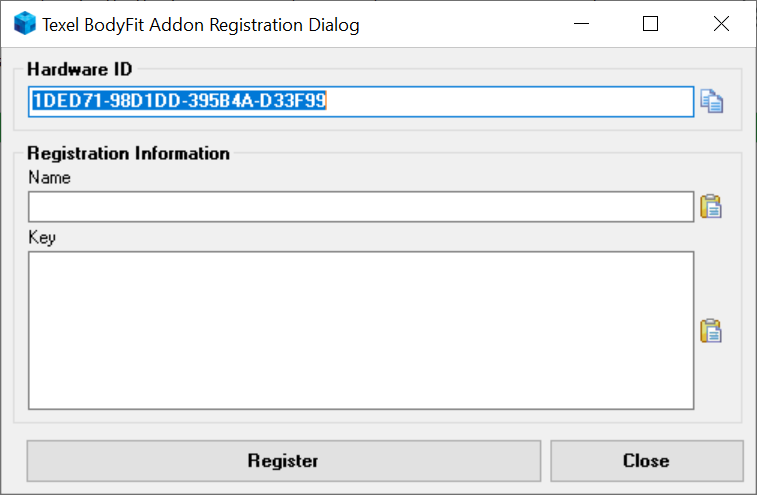

Registration Dialog

  • Hardware ID: The hardware identifier of your computer. To obtain a license key, send the contents of this field to your manager's email address or to support@texel.graphics. Please also include the product name (Texel BodyFit Addon) in your request.

  • Name: Copy and paste the registration name you received to this field.

  • Key: Copy and paste the license key you received to this field.

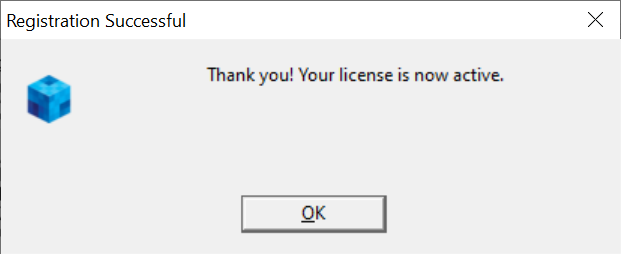

After entering the registration data, click the Register button. If the registration is successful, a corresponding message will be displayed:

Successful Registration Message

After successful registration the license will be saved on your computer. If the license is inactive, the registration dialog will be displayed when using Texel BodyFit Addon functions from Texel Studio 3.

If you encounter any problems with license activation, or if you want to transfer the license to another device, please contact our support team at support@texel.graphics to resolve the issue.

3D Scanning for Texel BodyFit Addon

3D scans must meet the following requirements for automatic body measurements:

  • The subject must be scanned in A-pose (feet shoulder-width apart, arms symmetrically positioned at a 30-45 degree angle to the body).

  • The 3D scan must be taken while wearing underwear or tight-fitting clothing (thin, wrinkle-free, and contoured to the body).

  • If the subject has long hair, it must be pulled back into a bun at the back of the head (not on the top), with strands of hair not covering the neck and shoulders.

Example of a 3D scan in A-pose:

3D scan in A-pose

Viewing Body Measurements in 3D

To obtain body measurements for a 3D scan in A-pose, use the Tools > Measure with BodyFit... menu item (or the button on the toolbar or the Ctrl+B keyboard shortcut). After processing, a window with a 3D visualization of the body measurements will appear.

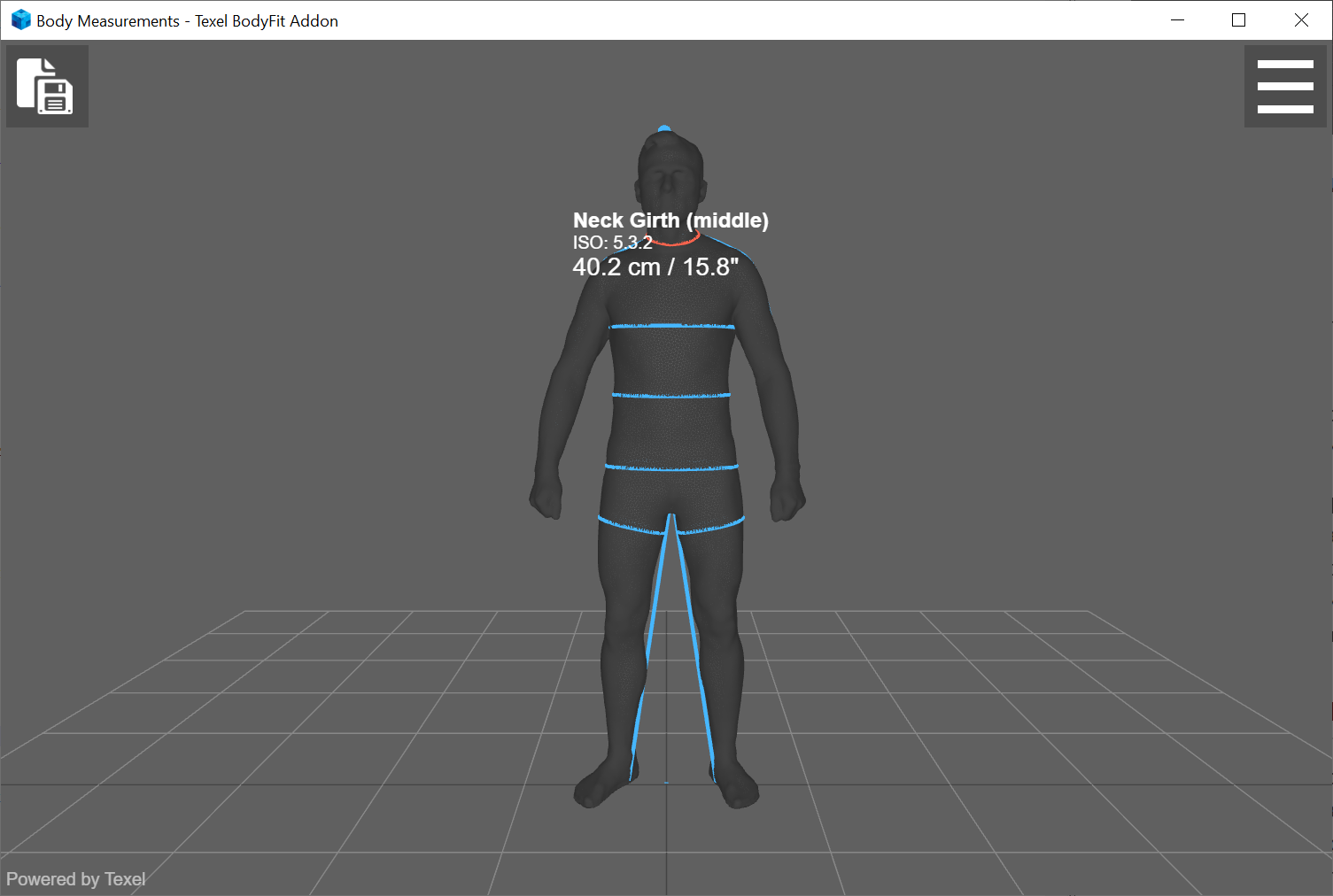

Viewing Body Measurements in 3D

Use the mouse to control the virtual camera:

  • Hold down the left mouse button and move the cursor to rotate.

  • Use the mouse wheel to zoom in and out.

  • Hold down the right mouse button and move the mouse to pan the virtual camera.

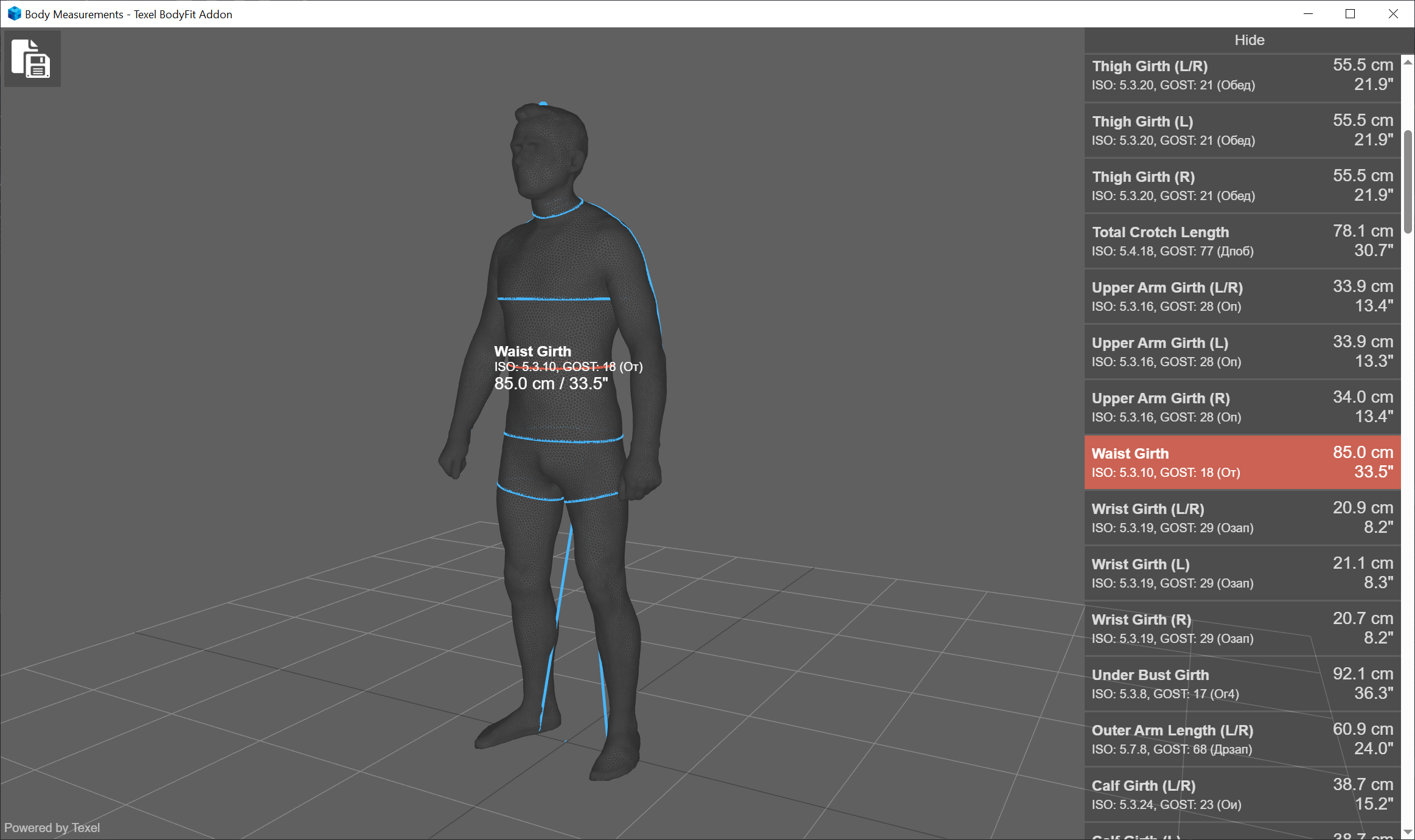

Clicking on a measurement will display its name, GOST and ISO identifiers, and the numerical value in centimeters and inches. To open the full list of measurements, use the All Measurements button (top right).

Exporting Body Measurements

To export body measurements, use the Export Measurements... button (top left). Texel BodyFit Addon supports exporting to a Microsoft Excel spreadsheet (XLSX), CSV file, or a TXT file for Assol CAD. You can also export a file for Assol CAD directly from the File > Export for CAD > Assol... menu (or use the Ctrl+Shift+A keyboard shortcut).

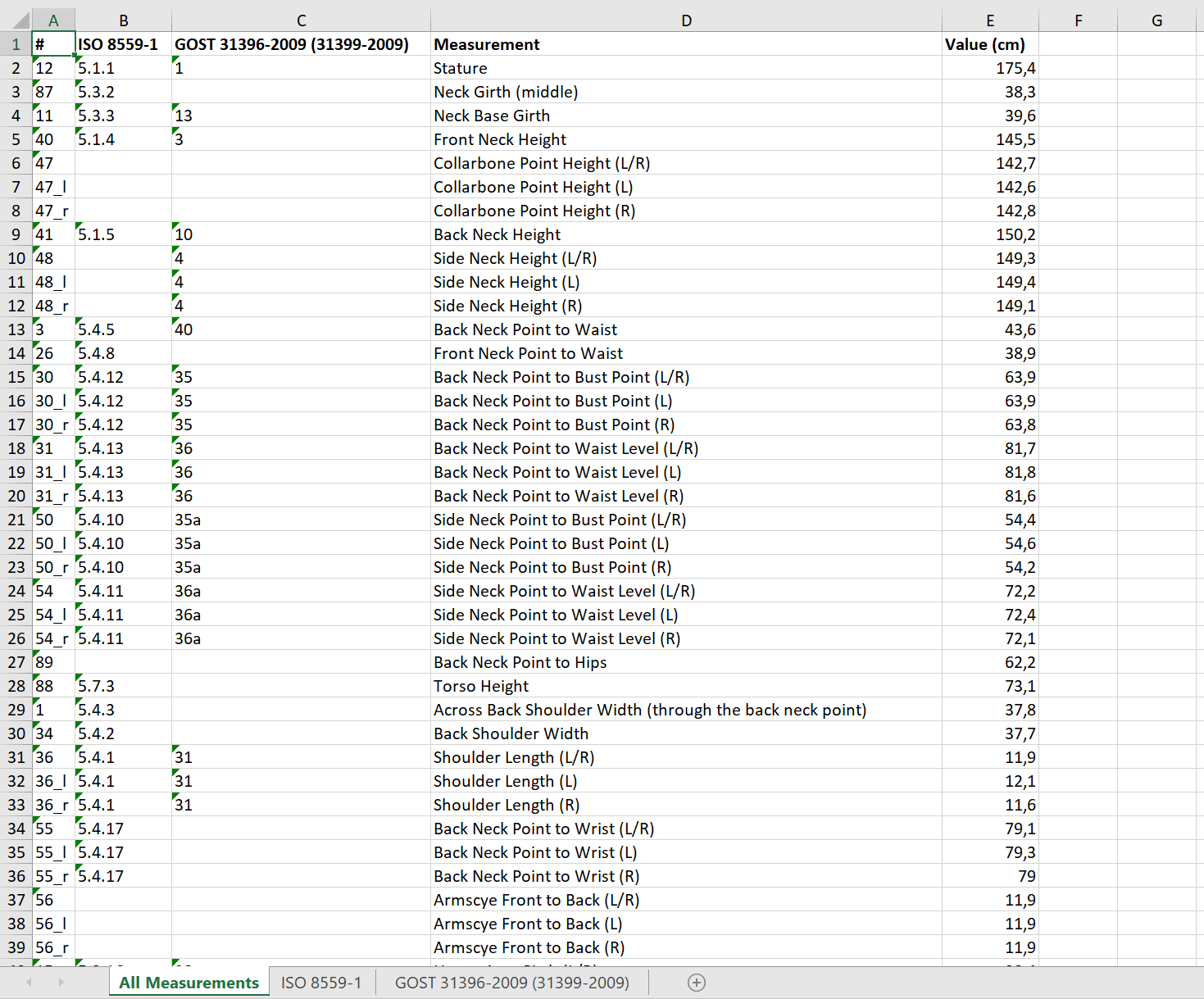

Example of exporting measurements to a Microsoft Excel spreadsheet:

Export to Microsoft Excel

Please note that the interface language of the Texel BodyFit Addon (as well as the measurement names during export) will be set to the same language as the interface language selected in Texel Studio 3.
